In my previous post, Power monitoring with Home Assistant, MQTT, Rust and a Raspberry Pi, I explained how I built a Rust program to read data from my power meter and send it to Home Assistant via MQTT.

To keep the fun going, I started looking into the MQTT protocol, and I decided to write my own MQTT client in Rust.

It’s called aimeqtt, and it basically only supports what I need for this project:

MQTT 3
QoS 0 (at most once)
Control packets:
- Connect to a MQTT broker (CONNECT, CONNACK)
  - Username/password support
- Send messages (PUBLISH)
- Receive messages (SUBSCRIBE, SUBACK, PUBLISH)
- Keep alive (PINGREQ, PINGRESP)

Luckily, it’s not a very complex protocol, I was able to find most of the information I needed in the specs, and some LLMs were able to help me for the rest.

I can’t say I’m very proud of the code, but it works, and it’s been working for a year now without issues. It has no purpose other than being used in my project. I don’t consider it a reference implementation by any means.

Here is how the client is used:

#[tokio::main]
async fn main() {
    let broker_host = "127.0.0.1";
    let broker_port = 1883;

    let mqtt_client_options = client::ClientOptions::new()
        .with_broker_host(broker_host.to_string())
        .with_broker_port(broker_port)
        .with_keep_alive(60)
        .with_callback_handler(callback_handler);

    let mut mqtt_client = client::new(mqtt_client_options).await;

    mqtt_client
        .subscribe("a/b".to_string())
        .expect("Failed to subscribe to topic.");

    loop {
        match mqtt_client
            .publish("a/b".to_string(), "msg".to_string())
            .await
        {
            Ok(_) => println!("Message published successfully"),
            Err(e) => println!("Failed to publish message: {:?}", e),
        }

        tokio::time::sleep(Duration::from_secs(1)).await;
    }
}

fn callback_handler(payload: String) {
    println!("Received message: {payload}");
}

I use the builder pattern for the client options. There is a single callback handler for all received messages, which might not be ideal for all use cases, but it’s enough for me, I actually don’t use it in teleinfo2mqtt-rs, it’s just for the example.

Crafting the TCP packets #

MQTT is a binary protocol, so we need to craft the content of the TCP packets. I’m not working with binary protocols often, so it was a nice change. To be honest, reading the spec was not enough, so I often resorted to Wireshark to see what the packets I sent looked like.

I used mosquitto_pub and mosquitto_sub as reference implementations to compare and reverse-engineer, in a way, the packets, to understand what I didn’t get from the specs.

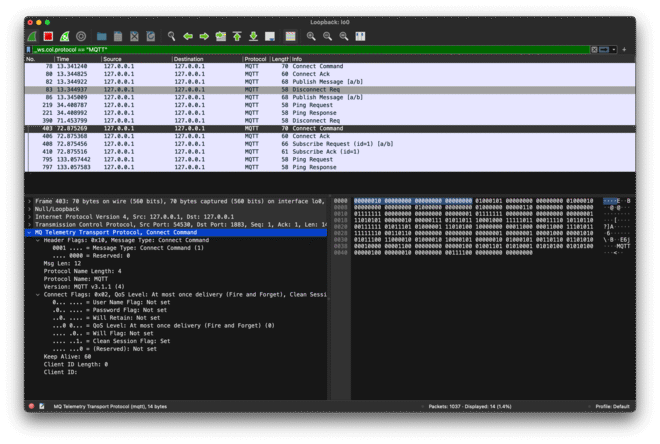

Wireshark helping debug MQTT control packets

MQTT Packets are called control packets. There are a few of them such as CONNECT, CONNACK, PUBLISH, SUBSCRIBE, SUBACK, PINGREQ, PINGRESP, etc. This is how the communication between the client and the broker is done.

A MQTT control packet is composed of 3 parts:

struct RawPacket {
    fixed_header: Vec<u8>,
    variable_header: Vec<u8>, // optional, depends on the packet type
    payload: Vec<u8>, // optional, depends on the packet type
}

impl RawPacket {
    fn to_bytes(&self) -> Vec<u8> {
        let mut bytes = Vec::new();
        bytes.extend_from_slice(&self.fixed_header);
        bytes.extend_from_slice(&self.variable_header);
        bytes.extend_from_slice(&self.payload);
        bytes
    }
}

Crafting the CONNECT packet has been the most complex. But for example, the PUBLISH packet is pretty simple. We need to:

Set the packet type to PUBLISH in the fixed header
Set the topic name in the variable header
Set the message in the payload
Set the remaining length field in the fixed header (basically the length of the variable header and the payload)

impl Packet {
    fn to_raw_packet(&self) -> RawPacket {
        let mut packet = RawPacket {
            fixed_header: Vec::new(),
            variable_header: Vec::new(),
            payload: Vec::new(),
        };

        packet
            .fixed_header
            .push((self.packet_type.clone() as u8) << 4); // Packet Type

        match self.packet_type {
            PacketType::PUBLISH => {
                packet.variable_header.push(0x00); // Topic name Length MSB
                packet
                    .variable_header
                    .push(self.topic.as_ref().unwrap().len() as u8); // Topic name Length LSB
                packet
                    .variable_header
                    .extend_from_slice(self.topic.as_ref().unwrap().as_bytes()); // Topic Name

                packet
                    .payload
                    .extend_from_slice(self.message.as_ref().unwrap().as_bytes());

        [...]
        // more sutff, like computing the remaining length field

pub fn craft_publish_packet(topic: String, payload: String) -> Vec<u8> {
    Packet::new(PacketType::PUBLISH)
        .with_client_id("rust".to_string())
        .with_topic(topic)
        .with_message(payload)
        .to_raw_packet()
        .to_bytes()
}

The event loop #

Now, the internals of the client are a bit more complex. I ended up using an event loop pattern to handle the connection to the broker, sending packets, and reading packets from the broker.

Here is a diagram that tries to explain how it works:

graph TB Start[Start] --> ConnectBroker{Connect to MQTT broker} ConnectBroker -->|Success| SendConnect[Send CONNECT message] ConnectBroker -->|Failure| Retry[Wait 5 seconds and retry] Retry --> ConnectBroker SendConnect --> EventLoop{Event Loop} EventLoop -->|Ping tick for keep alive| SendPingReq[Send PINGREQ packet to TCP channel] EventLoop -->|Received PUBLISH message from channel| SendPublish[Send PUBLISH packet to TCP channel] EventLoop -->|Received packet from TCP channel| SendRawPacket[Send TCP packet to TCP stream] EventLoop -->|TCP stream ready to read| ReadResponse{Read broker response} SendPingReq --> EventLoop SendPublish --> EventLoop SendRawPacket --> EventLoop ReadResponse -->|Success| ParsePacket[Parse packet and handle accordingly] ReadResponse -->|Failure| Reconnect[Break and reconnect] ParsePacket --> EventLoop Reconnect --> ConnectBroker

The client will send a CONNECT packet to the broker, then enter an event loop. It will send a PINGREQ packet every x seconds to keep the connection alive.

Internally, the event loop is run in a tokio::task, and it uses tokio::sync::mpsc (multi-producer, single-consumer) to enqueue things to do for the event loop. On each execution of the event loop, it will try to:

Send a PINGREQ packet to the raw packet MPSC channel if half of the defined keep alive duration has passed
Send a PUBLISH packet to the raw packet MPSC channel if there is a message in the publish MPSC channel
Write a raw packet to the TCP stream if there is a packet in the raw packet MPSC channel
Read from the TCP stream if it’s ready to read
- Parse it, and call the callback handler if it’s a PUBLISH packet

Here’s how it looks like in the code. The connection to the broker is done in connect_to_broker() in the event loop and the handle_connection() function is the main loop.

impl Client {
    async fn event_loop(&mut self) {
        let mut publish_channel_receiver = self.publish_channel_receiver.take().unwrap();

        loop {
            match self.connect_to_broker().await {
                Ok(mut stream) => {
                    if let Err(e) = self
                        .handle_connection(&mut stream, &mut publish_channel_receiver)
                        .await
                    {
                        event!(Level::ERROR, "Connection error: {}", e);
                    }
                    // Retry connection after error
                    tokio::time::sleep(Duration::from_secs(5)).await;
                }
                Err(e) => {
                    event!(Level::ERROR, "Failed to connect to MQTT broker: {}", e);
                    tokio::time::sleep(Duration::from_secs(5)).await;
                }
            }
        }
    }

    async fn connect_to_broker(&self) -> std::io::Result<TcpStream> {
        let mut stream = TcpStream::connect(self.broker_address.clone()).await?;
        event!(Level::DEBUG, "Connected to MQTT broker successfully.");

        let connect_packet =
            crate::packet::craft_connect_packet(self.username.clone(), self.password.clone());

        stream.write_all(&connect_packet).await?;
        event!(Level::DEBUG, "CONNECT message sent successfully.");

        Ok(stream)
    }

    async fn handle_connection(
        &mut self,
        stream: &mut TcpStream,
        publish_channel_receiver: &mut mpsc::UnboundedReceiver<PublishRequest>,
    ) -> std::io::Result<()> {
        let mut ping_interval = time::interval(Duration::from_secs(self.keep_alive as u64) / 2);

        loop {
            tokio::select! {
                _ = ping_interval.tick() => {
                    self.handle_ping().await?;
                }
                Some(publish_req) = publish_channel_receiver.recv() => {
                    self.handle_publish(publish_req).await?;
                }
                Some(packet) = self.raw_tcp_channel_receiver.as_mut().unwrap().recv() => {
                    self.handle_raw_packet(stream, packet).await?;
                }
                _ = stream.ready(Interest::READABLE) => {
                    match self.handle_incoming_packet(stream).await {
                        Ok(()) => continue,
                        Err(MqttError::ConnectionClosed) => {
                            event!(Level::INFO, "Broker closed connection");
                            return Err(std::io::Error::new(std::io::ErrorKind::ConnectionAborted, "Broker closed connection"));
                        }
                        Err(e) => {
                            event!(Level::ERROR, "Failed to handle incoming packet: {}", e);
                            return Err(e.into());
                        }
                    }
                }
            }
        }
    }

I also use tokio::sync::oneshot channels when publishing a message, to be able to await an error from the event loop:

mqtt_client
    .publish("a/b".to_string(), "msg".to_string())
    .await
    .expect("Failed to send message to client");


// internally:

pub async fn publish(&self, topic: String, payload: String) -> Result<(), ClientError> {
    let (resp_tx, resp_rx) = oneshot::channel();

    self.publish_channel_sender
        .send(PublishRequest {
            topic,
            payload,
            responder: resp_tx,
        })
        .map_err(|e| {
            event!(
                Level::ERROR,
                "Failed to send PUBLISH request to event loop: {}",
                e
            );
            ClientError::InternalError
        })?;

    resp_rx
        .await
        .map_err(|e| {
            event!(
                Level::ERROR,
                "Failed to receive response from event loop: {}",
                e
            );
            ClientError::InternalError
        })?
        .map_err(|e| {
            event!(Level::ERROR, "Failed to publish message: {}", e);
            ClientError::InternalError
        })?;

    Ok(())
}

I did implement basic subscription support, more to test the client with itself than to use for teleinfo2mqtt-rs. When the event loop reads the TCP stream, it will call the callback handler if it’s a PUBLISH packet, which runs in a tokio task to not block the event loop.

async fn handle_incoming_packet(&self, stream: &mut TcpStream) -> Result<(), MqttError> {
    let mut response = [0; 128];

    match stream.try_read(&mut response) {
        Ok(0) => Err(MqttError::ConnectionClosed),
        Ok(n) => {
            if n >= response.len() {
                return Err(MqttError::PacketTooLarge);
            }
            let packet = &response[0..n];
            self.process_packet(packet);
            Ok(())
        }
        Err(ref e) if e.kind() == std::io::ErrorKind::WouldBlock => Ok(()),
        Err(e) => Err(e.into()),
    }
}

fn process_packet(&self, packet: &[u8]) {
    let packet_type = packet[0] >> 4;
    match crate::packet::PacketType::from(packet_type) {
        crate::packet::PacketType::CONNACK => crate::packet::parse_connack_packet(packet),
        crate::packet::PacketType::PUBLISH => {
            let (_, payload) = crate::packet::parse_publish_packet(packet);
            if let Some(callback_handler) = self.callback_handler {
                tokio::spawn(async move {
                    callback_handler(payload);
                });
            }
        }
        _ => event!(Level::DEBUG, "Unsupported packet type: {}", packet_type),
    }
}

That’s about it! It was really fun, I think the error handling is pretty lacking and I’m not sure about the design, but at home my environment is pretty stable, so it’s been working fine.
